Visqueen Zedex Non-Combustible Flexi Preformed Units

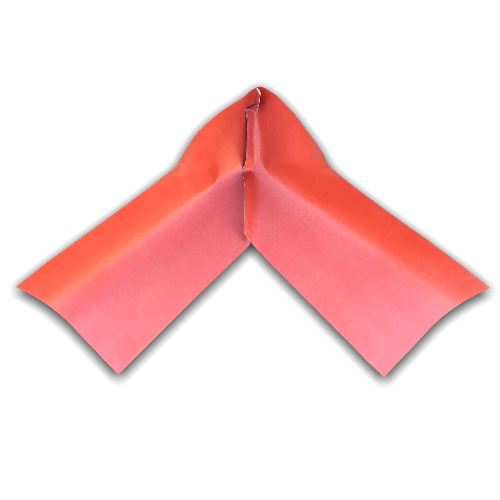

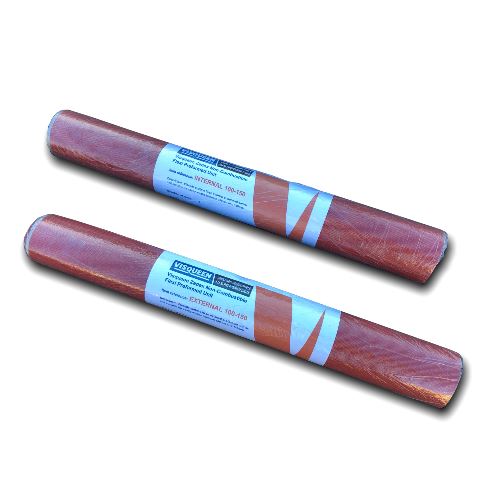

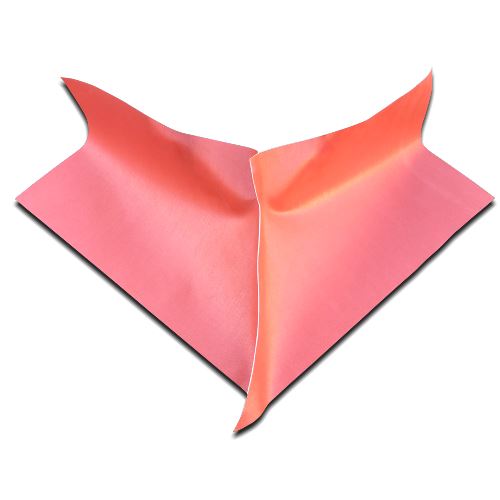

Visqueen Zedex Non-Combustible Flexi Preformed Units are manufactured from Visqueen Zedex Non-Combustible DPC. The range consists of surface fixed (face fixed) external and internal 90° corner units with a 150mm vertical rise and 100mm vertical fixing flange. The innovative design allows each unit to be suitable for an approximate 50mm cavity width variance when incorporated into a brickwork outer leaf. External and internal surface fixed units are available for the following cavity width ranges: 40-100mm, 100-150mm, 150-200mm, 200-250mm, and 250-300mm. NB. Cavity width is measured from the cavity face of the inner leaf e.g. weather defence board, to the cavity face of the masonry outer leaf. The units are rolled up, individually wrapped and supplied 4 per box.

Features & benefits

BDA Agrement certificated

Visqueen Zedex Non-Combustible Flexi Preformed Unit (Flexi PFU) - part of the Visqueen Zedex Non-Combustible DPC system

Flexi PFU achieves a reaction to fire classification A2 - s1, d0 to BS EN 13501-1:2018 - compliant with UK Building Regulations

Off-the-shelf surface fixed external and internal 90° corner units - reduced lead times

Off-site factory manufactured - reduces the risk of water ingress

Flexible 90° corner units - provides an allowance for site tolerances

Corner units designed for approx. 50mm variance in cavity widths - each unit designed for cavity widths within a specific range
