Wall Mounted Eltham Trough

Product overview: The Wall Mounted Eltham Trough, one of the common favourites amongst Architects, secures cycles at a completely vertical position to maximise cycle parking capacity. The locking loop system that secures the frame and the wheel can help contribute towards gaining ENE8 Cycle storage credits when being used in the appropriate situation, which falls under the Code for Sustainable Homes.

Key Features:
•    This product is very simple to assemble and the gauge of steel used means that the product is suitable for outdoor use as well as indoor use.
•    Mild steel cycle trough for wall mounted fixing
•    Fixing directly to a vertical surface enables the product to save even more space than the rack version
•    Cycle position centres should be installed as standard at 350mm

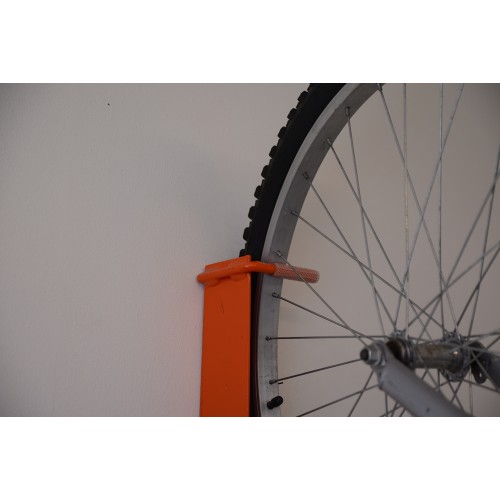

•    The front wheel is supported from a rubber lined hook and the rear wheel uses a lower support to stop any sideways movement
•    Locking loops for securing the bicycle frame and wheel
•    Should be installed as high – low cycle positions, offering improved space saving

Finishes/Types Available: Hot Dip Galvanised BSEN ISO 1461:9001 and/or Powder coated to European Standards BSEN13438 and BSEN15773.
We can powder coat to any RAL. For further details, please visit our website.

Materials: Frame work is fabricated from 50 x 25 x 2mm mild steel box section. Wheel troughs are fabricated from 3mm folded sheet metal with 10mm round bar locking loops.

Product Dimensions and Weights*:

*Please note that all weights are approximate. Final weights may vary slightly depending on the type of finish chosen etc.
